Friday, December 30, 2011

Vice Jaws

The mill came with a nice old Kurt vise but it was missing the jaws. Instead of buying some and waiting a week for them to come in I decided to make them.
Had some 3/4" plate kicking around the shop that happened to be 6" wide

Roughing the torch cut ends in.

Finish Pass.

I have a 2" stone in the surface grinder to speed things up.

Left end.

Right end, I'd say its square.

After the holes were marked via a set of transfer screws I made on the lathe quick, it was center drilled, then drilled for a 1/2" bolt and counter bored.

I used the quill as a sort of press to keep the jaw tight to the vice while it was bolted in.

Finished up, 3 hrs or 1 week?

Published with Blogger-droid v2.0.2

Monday, December 26, 2011

Friday, December 23, 2011

Multi Purpose

Turns out that tunnel former doubles as a break if I just flip it 180...

Published with Blogger-droid v2.0.2

Thursday, December 22, 2011

Loaded up

4 Hours and a lot of tactful picing, winching, prying and rolling and the grinder is on the truck. We ended up being a bit under prepared thinking the unit weighed around 500lbs but it turns out it was closer to 1000.

Published with Blogger-droid v2.0.2

Saturday, December 17, 2011

Ready for the top

Banged the table base out nice and square.

Published with Blogger-droid v2.0.2

Friday, December 16, 2011


Were having a 5' piece of steel ground for a frame table. This is one of 10 machines that will be doing the work, and its on the small side!

Published with Blogger-droid v2.0.1

Monday, December 12, 2011

Tunnel rolling tool

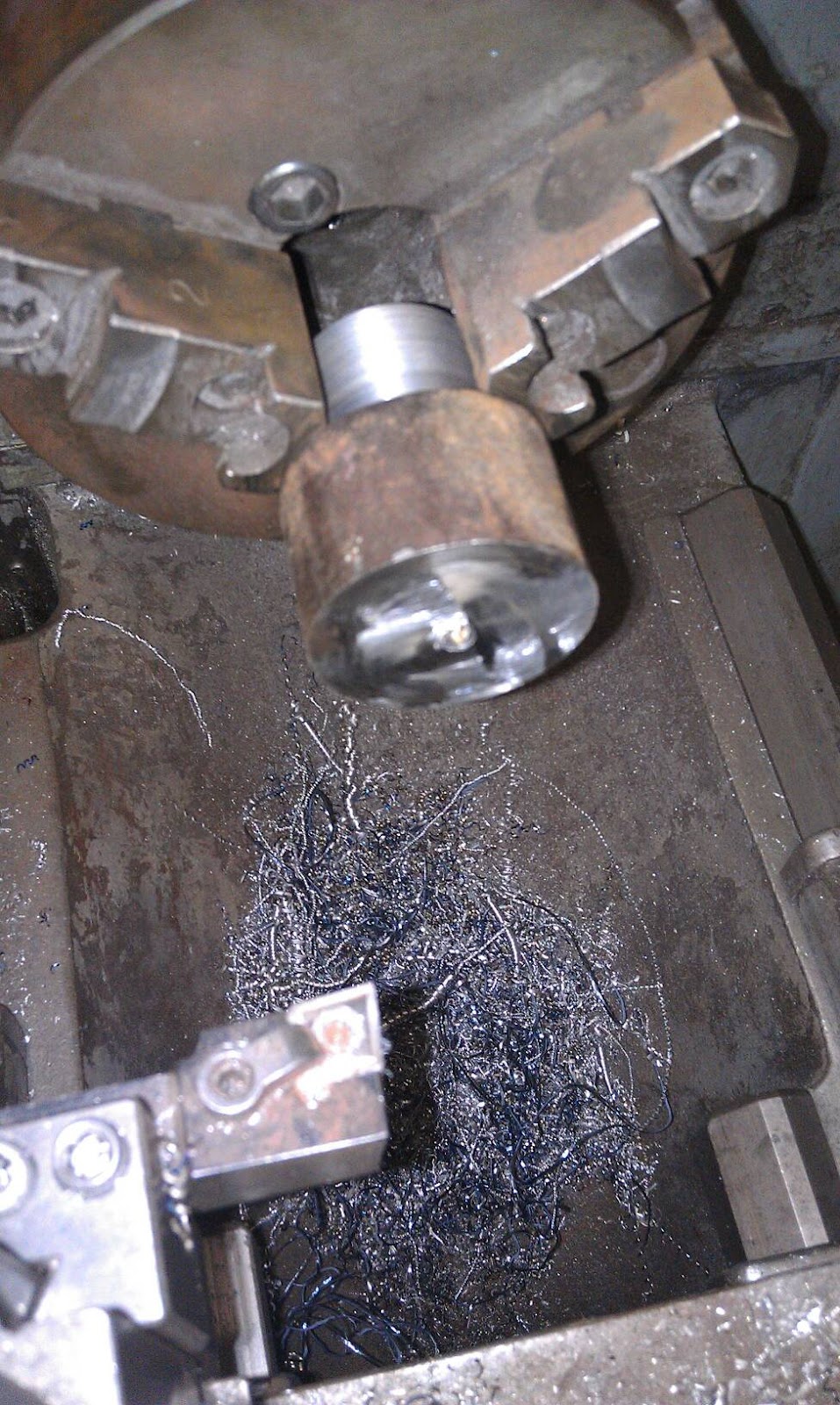

With the OD set it's time to bore the bearing pocket

Press in bearing

Flip, repeat process and cut in half
Weld end cap in tube

With everything machined the tool gets assembled for the first time
In it's final position; added some bearings to the handles as a finishing touch.
First test piece in stainless, works as expected
Needless to say I forgot to take pictures at some crucial points in the making of this tool but my concentration on the task got the better of me and I forgot. It's a pretty simple concept though so I'm sure you guys can figure it out. So far on some small test pieces it works great. I have to do a tank for Gary so when I roll the tunnel ill be sure to document and post.

Published with Blogger-droid v2.0.1

Sunday, December 4, 2011

Oldie but Goodie

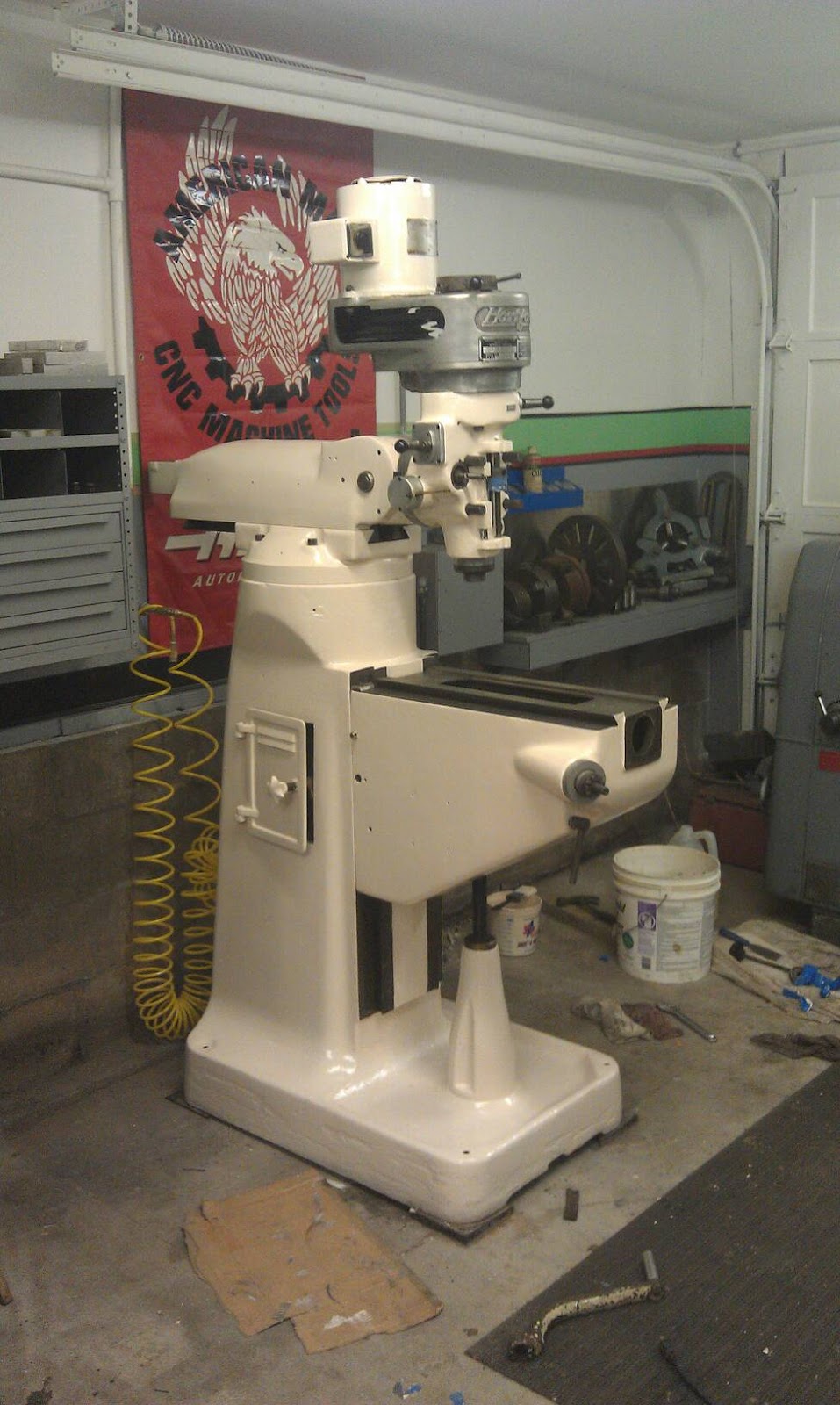

Still working to get the mill back to factory spec, but while we are waiting for parts to arrive I figured since its all apart anyways why not paint it?

Published with Blogger-droid v2.0.1
